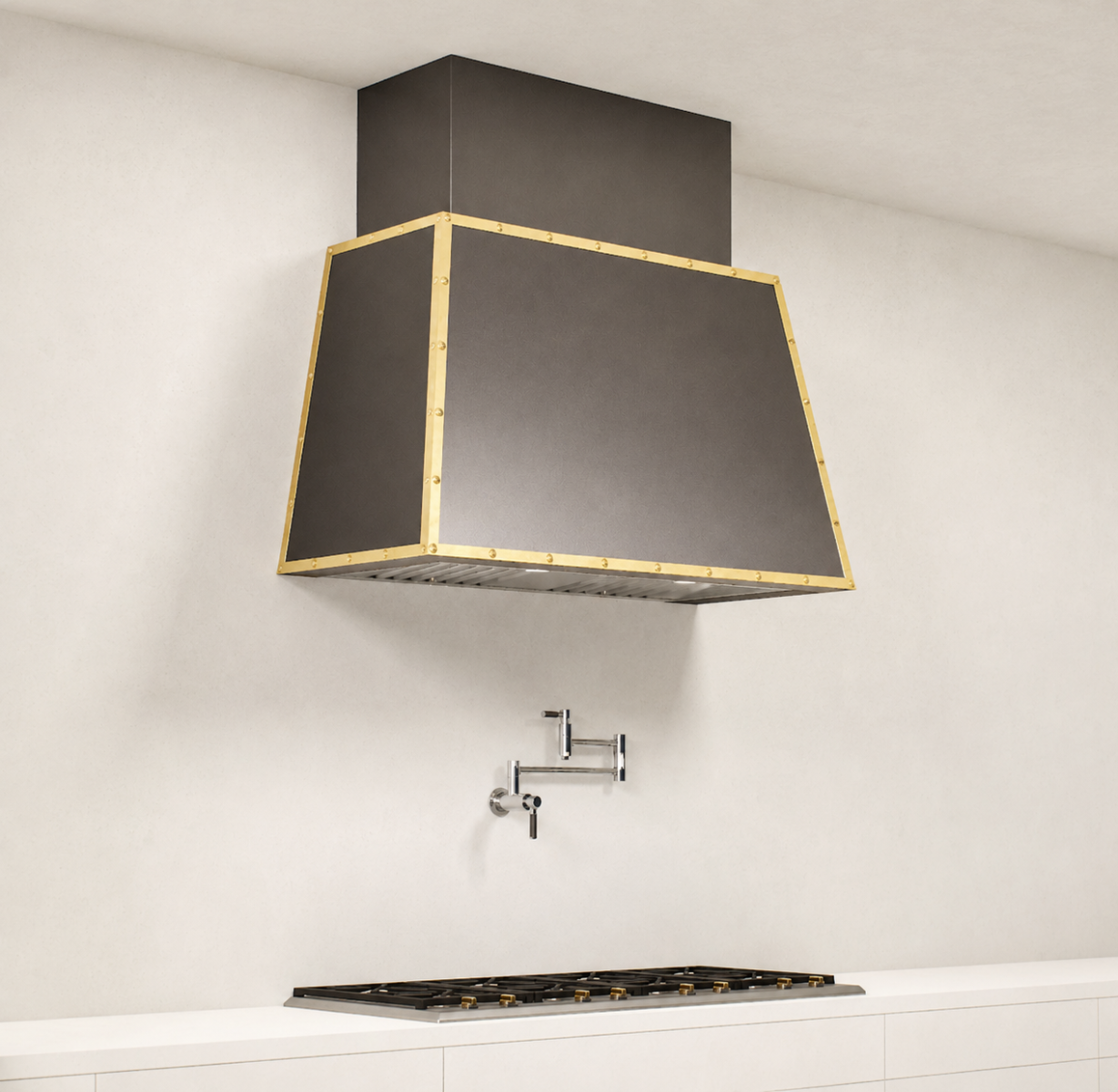

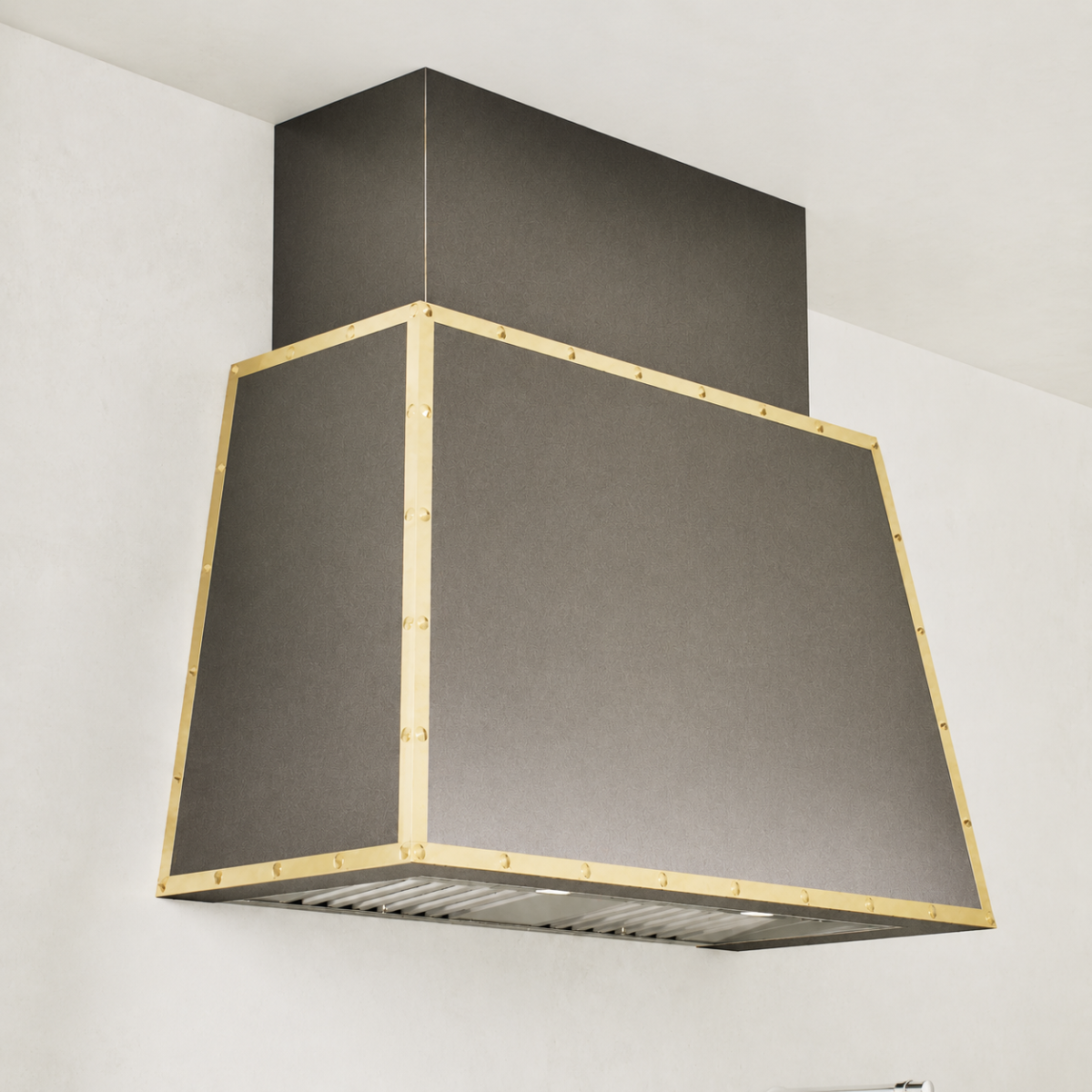

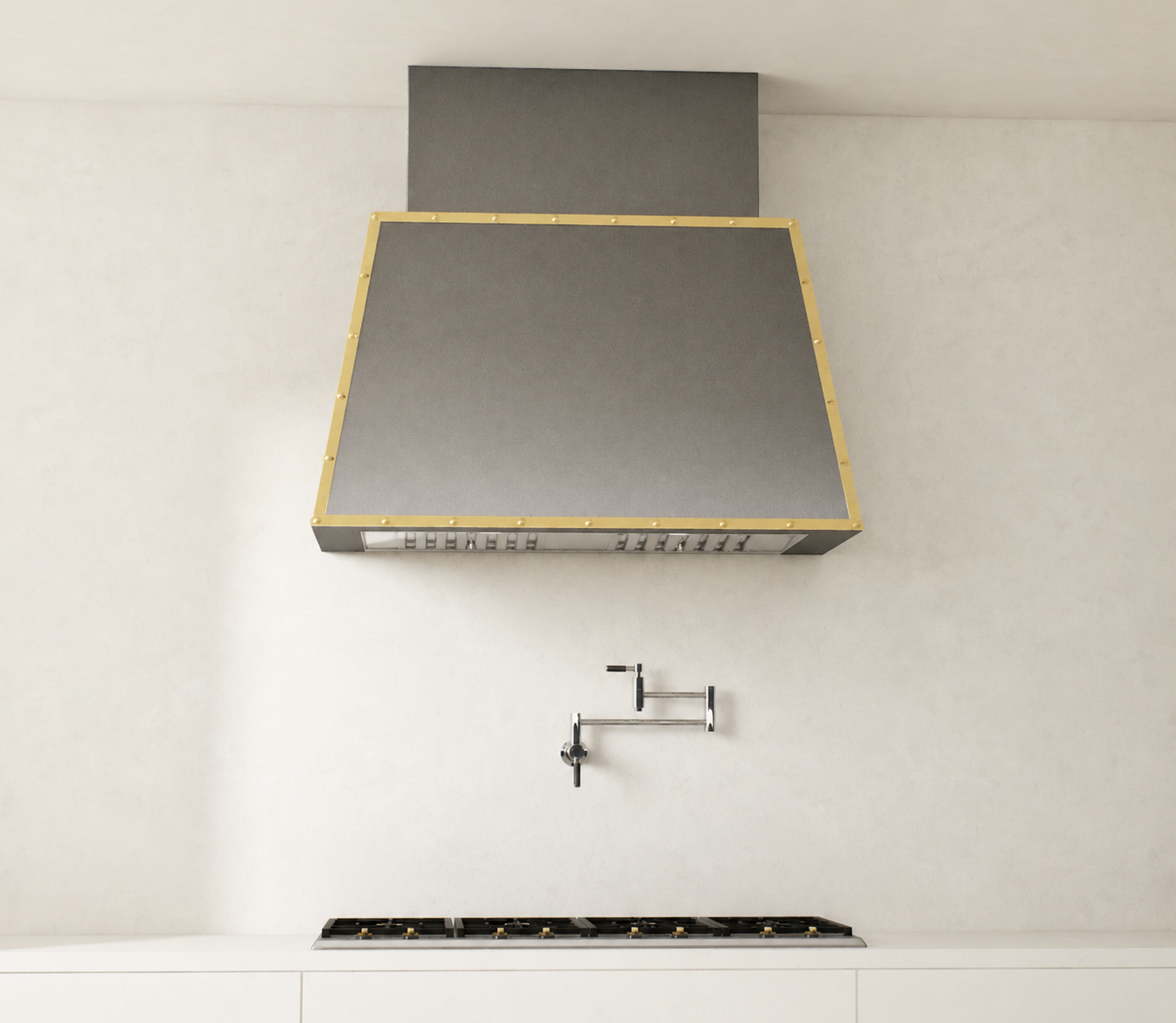

Euro ES11 - Custom Range Hood

Select from a wide variety of metals including copper, brass, or stainless steel.

Polished brass, polished copper, natural copper and natural brass finishes will tarnish and patina with normal use. All other finishes are sealed or fire-cured depending on the specific finish or metal.

Finish and texture selections affect the price with hammering and artisan finishes costing more in unison with the size of your hood.

Stainless steel is only available in smooth.

Artisan finishes are only available in hand hammered.

Premium copper finishes are offered in smooth and a variety of unique textures.

Straps are 1” wide and made from thick, 16 gauge metal. The placement and quantity of straps may change depending on the size and shape of your custom hood.

Speak with your Design Associate after purchase for pricing on custom strap configurations.

Your range hood depth will be determined when selecting your insert fan below.

Range Hood Depth is determined by Model, Mount and CFM.

Wall Mount - 295, 395 , and 610 CFM Insert Fans will receive a 18" Liner and 22-23" Range Hood Depth depending on the model.

Wall Mount - 1260 CFM Insert Fans will receive a 22" Liner and a 24-26" Range Hood Depth.

Island Mount - 295, 395, and 610 CFM Insert Fans will receive a 18" Liner and 27" Range Hood Depth.

Island Mount - 1260 CFM Insert Fans will receive a 22" Liner and a 31" Range Hood Depth.

These depths are estimates. All custom range hoods receive a CAD drawing for approval that shows the exact range hood depth.

Choose a range hood width greater than or equal to the width of your cooktop. Standard in the industry is to order your range hood in the same width as your cooktop.

Note: straps and rivets on the sides of range hoods are not included in the specified width of the hood, and may protrude up to 5/8 of an inch beyond the overall width.

The ideal height of your range hood will depend on the height of your ceilings and ventilation performance expectations. Your range hood should be installed 27”-36” above the cooktop.

Note: crown height is included in the overall height of your hood.

The formula for calculating your range hood height is:
Range hood height = ceiling height - cooktop height - space between top of cooktop and bottom of hood

Example: for 8ft (96in) ceilings. 96-36-30=30in range hood height

Integrated blower - all fan components are located within the hood

Recirculating blower - all fan components and a filter system are located within the hood

Remote Blower - the fan is located outside of the hood in a remote location such as in an attic

Design to Fit - we build the range hood to accommodate the insert fan of your choice

ABOUT RANGE HOOD DEPTH

Wall Mount - 295, 395, and 610 CFM Insert Fans will receive a 18" Liner and 22-23" Range Hood Depth depending on the model. 1260 CFM Insert Fans will receive a 22" Liner and a 24-26" Range Hood Depth.

Island Mount - 295, 395, and 610 CFM Insert Fans will receive a 18" Liner and 27". Range Hood Depth depending on the model. 1260 CFM Insert Fans will receive a 22" Liner and a 31" Range Hood Depth.

These depth ranges are estimates. All custom range hoods receive a cad drawing for approval that shows the exact range hood depth.

Production and shipping times vary depending on size, finish, and custom options. Your quote will include detailed lead time information and your dedicated sales rep will be available if needed to clarify any questions you have.
